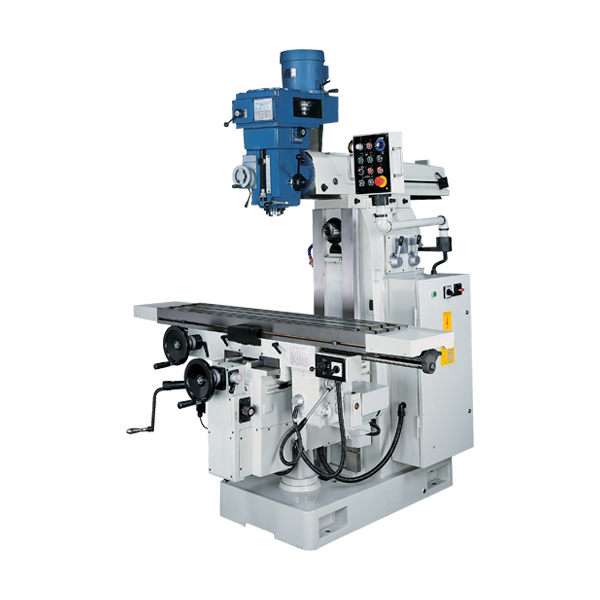

High Efficiency Milling Machine (Taiwan)
High Efficiency Milling Machine (Taiwan) Hot

Model:MW0800-042 Country of Origin:Taiwan Material:To be advised Color:Final detail to be provided on formal quotation sheet

Detail Specifications / Descriptions

Features

Max. Table Load: 450 kgs
Y axis inverter movement with ball screw
Hardened and ground slide ways assures that the table will stay where it belongs
Gear box feed to maintain powerful machining and end milling, and make working more efficiently
The very wide saddle 910mm keeps table movement smoothly in all directions to prevent from any deformation and allowance occurred

Description

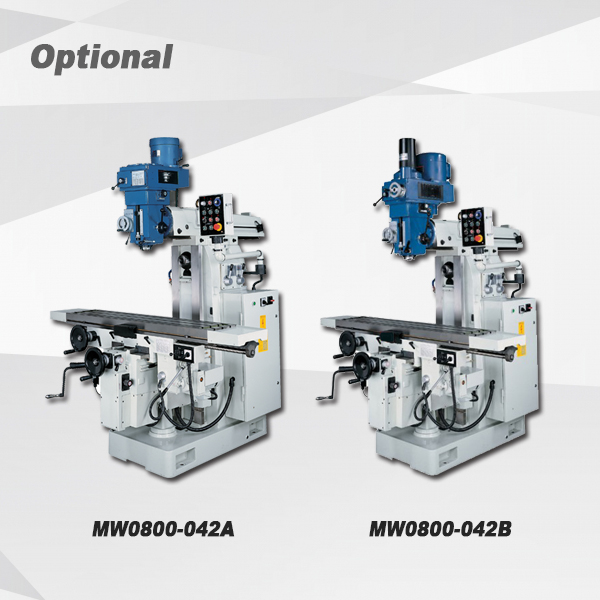

Two types of milling machine: step speed head (A) or variable speed head (B)
Rigid structure: meehanite cast iron
Precision working & easy maintenance

Specification

ITEMS MW0800-042A MW0800-042B
TABLE TABLE SIZE 1270x300
T SLOT (WxNO.xPITCH) 16x3x80
TRAVEL XxYxZ-MANUAL 930x400x450
XxYxZ-AUTO 920x380x450
FEED LONG./MIN. 18-320 (6 STEPS)
LONG. RAPID TRAVERSE/MIN. 1040
CROSS/MIN. 50-2200
VERTI, RAPID TRAVERSE/MIN. 360
SPINDLE SPINDLE NOSE N.S.T. 40
STEPS 16 VARIABLE
SPINDLE SPEED RPM 62-3000 75-3166
SWIVELLING ANGLE 45° (R&L)
QUILL TRAVEL 140
QUILL FEEDS/REV 0.035/0.07/0.14
SPINDLE NOSE TO TABLE 95-545
SPINDLE CENTER TO COLUMN 190-690
CROSS TRAVEL OF RAM 500
HORIZONTAL SPINDLE SPINDLE NOSE N.S.T. 40
SPINDLE SPEED RPM 60-1440
STEPS 9
SPINDLE TO BOTTOM OF RAM 175
SPINDLE CENTER TO TABLE 0-450
MOTOR VERTICAL SPINDLE 5HP-2/4P 5HP-4P
HORIZONTAL SPINDLE 5HP-4P
TABLE FEED (LONG.) 3/4HP-4P
TABLE FEED (CROSS) 1/2HP-4P-1/5
TABLE RAPID (VERTICAL) 1/2HP-4P-1/10
COOLANT PUMP 1/8HP-2P
SIZE MACHINE (Lx Wx H) 1740x 1614x 2007
NET WEIGHT (KGS) 2350 2450

Standard Accessories:

Coolant equipment
Vertical head auto lubrication pump
X, Y. axis turcite b
Slide way auto lubrication pump
Y axis inverter movement. With ball screw

Optional Functions:

X Axis Ball Screw with inverter movement
Vertical Head Attachment
Turret Head Inverter Motor with controller
Air Power Drawbar
Table Size 1470 x 300 mm
X Axis Feed Motor 1HP – 2P/ 4P (for A model)

The product pictures are for your reference only: final spec & accessories based on formal quotation
