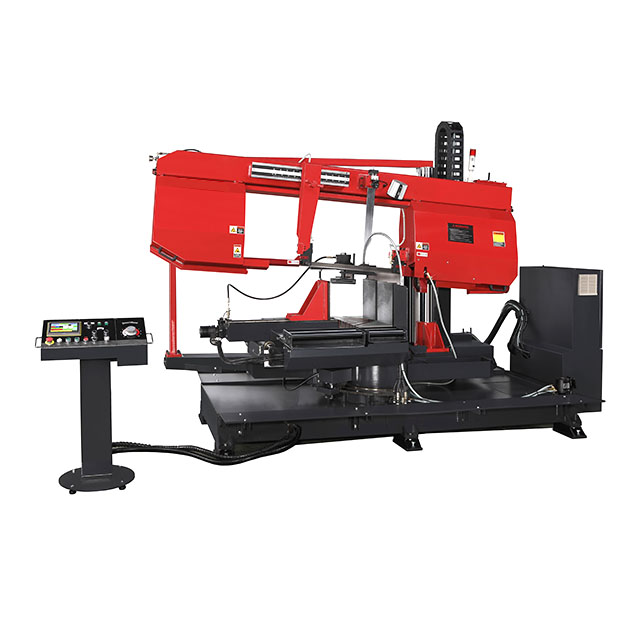

Heavy Duty Double Column Miter Cutting Bandsaw
Heavy Duty Double Column Miter Cutting Bandsaw Hot

Model:MW0603-025 Country of Origin:Taiwan Material: To be advised Color:Final detail to be provided on formal quotation sheet

Detail Specifications / Descriptions

Features

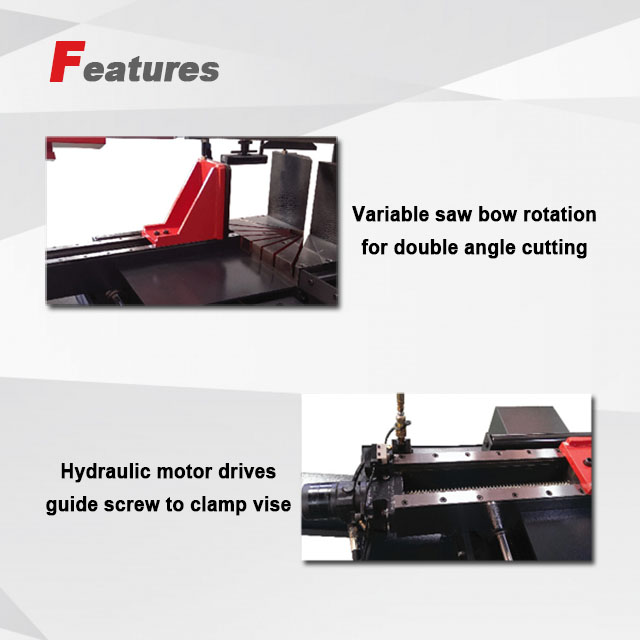

Vise movement is auto-shifted for the band saw
Hydraulic motor drives guide screw to clamp vise
Variable saw bow rotation for double angle cutting (R45°, L60°)
Blade to tilt 5 degree design suitable for cutting wide work-piece or H beam

Description

With Hydraulic blade tension control device
Motor inverter can adjust blade speed
Select the cutting mode on touch screen for saw bow auto-rotation

Specifications

Cutting Capacity (H x W)
(1) 90° ● 460 mm █ 460 x 460 mm ██ 420 x 820 mm
(2) 45° (R/L) ● 460 mm █ 420 x 420 mm ██ 420 x 550 mm
(3) 60° (L) ● 350 mm █ 330 x 330 mm ██ 460 x 280 mm
Blade Size: 41 x 1.3 x 6185 mm
Blade Speed: 30 ~ 85 MPM
Blade Motor: 5 HP
Hydraulic Motor: 2 HP
Coolant Motor: 1/6 HP
Table Height: 760 mm
Packing Size (L x W x H): 3610 x 1690 x 2150 mm
N.W.: 2100 KGS
The product pictures are for your reference only: final spec & accessories based on formal quotation

Heavy Duty Double Column Miter Cutting Bandsaw
